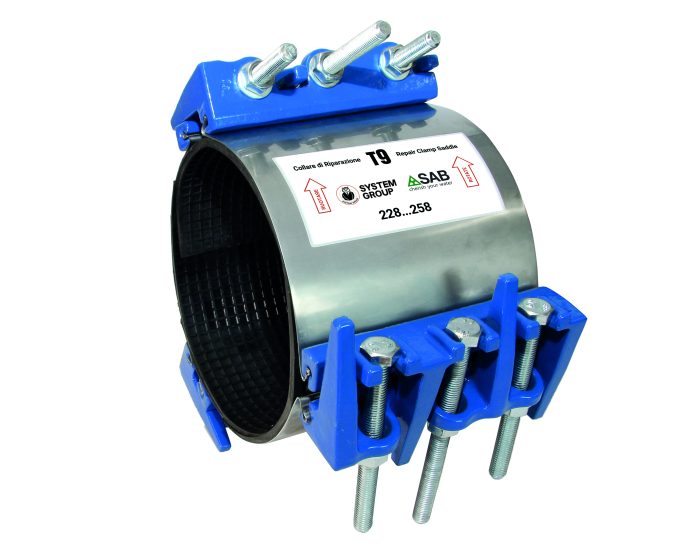

Repair clamp saddle with 9 bolts T9
8155
SAB repair clamps are used for the temporary repair of damaged pipelines made of various materials, both plastic and metal. The repair clamps consist of a cast iron support and a steel clamp, while the tightening bolts are made of galvanized steel. Repair clamps have a net NBR inside gasket that guarantees the hydraulic seal. Due to their versatility, they are installed on pipes from different materials in aqueducts, irrigation and gas systems, methane, LPG or compressed air pipelines.
COLLARI
| Codice Prodotto | DE min | DE max | L |
|---|---|---|---|
| 8155300330 | 300 | 330 | 200 |
| 8155330360 | 330 | 360 | 200 |
| 8155360390 | 360 | 390 | 200 |
| 8155390420 | 390 | 420 | 200 |
| 8155420450 | 420 | 450 | 200 |
| 8155450480 | 450 | 480 | 200 |
| 8155480510 | 480 | 510 | 200 |
| 8155510540 | 510 | 540 | 200 |
| 8155540570 | 540 | 570 | 200 |
| 8155570600 | 570 | 600 | 200 |
| 8155600630 | 600 | 630 | 200 |
| 8155630660 | 630 | 660 | 200 |
| 8155660690 | 660 | 690 | 200 |
| 8155690720 | 690 | 720 | 200 |
| 8155720750 | 720 | 750 | 200 |
